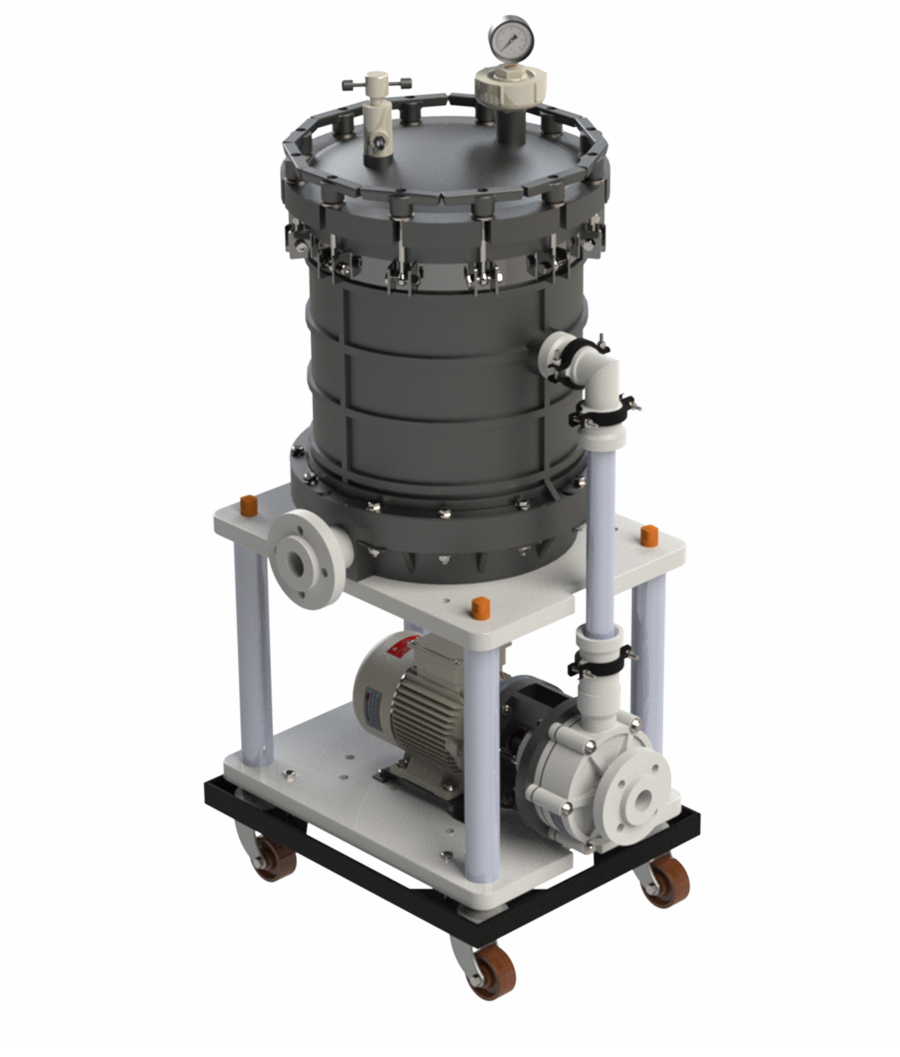

PFU - SINGLE FILTER UNIT

  • Home
  • PFU - SINGLE FILTER UNIT

PFU - SINGLE FILTER UNIT - Single

-

Size Available
Tags :- PP Filter PP filters for electroplating plants PP filter for corrosive chemicals PP plate filters Single

-

PFU 200 GF

M.O.C. – Chamber Moulded GF PP
No. Of Plates In Chamber 16
Dia. Of Plates 204 mm
M.O.C. - Plates P.P
Max. Pressure 1.2 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 6000 Ltr / hr
Suction X Discharge 1 Inch X 1 Inch
Pump Model (Monoblock) DMP 100 IMS
Motor 1 HP 2900 RPM

PFU 300 GF

M.O.C. – Chamber Moulded GF PP
No. Of Plates In Chamber 20
Dia. Of Plates 304 mm
M.O.C. - Plates P.P
Max. Pressure 1.48 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 12000 Ltr / hr
Suction X Discharge 1.5 Inch X 1.5 Inch
Pump Model (Monoblock) DMP 200 IMS
Motor 2 HP 2900 RPM

PFU 400 GF

M.O.C. – Chamber Moulded GF PP
No. Of Plates In Chamber 10
Dia. Of Plates 375 mm
M.O.C. - Plates P.P
Max. Operating Temp. 60 ℃
Max. Capacity 20000 Ltr / hr
Suction X Discharge 2 Inch X 2 Inch
Pump Model (Monoblock) DMP 300 IMS
Motor 3 HP 2900 RPM
