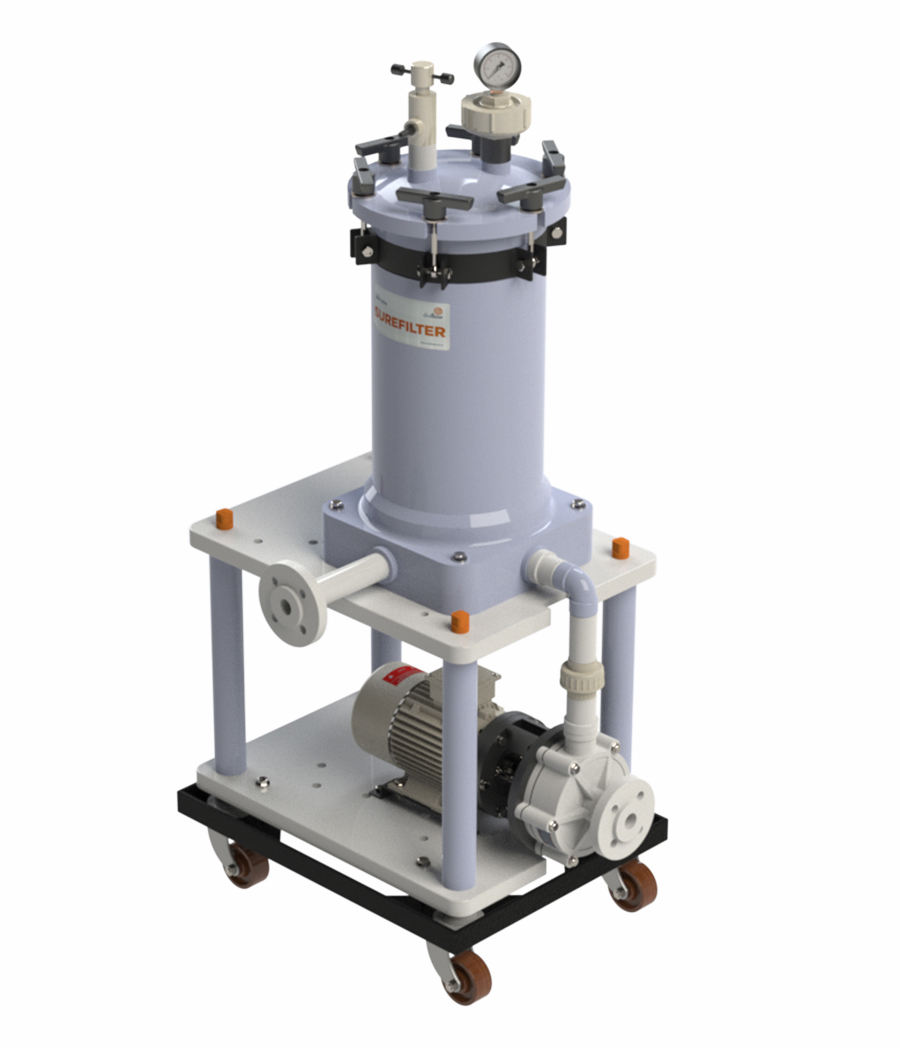

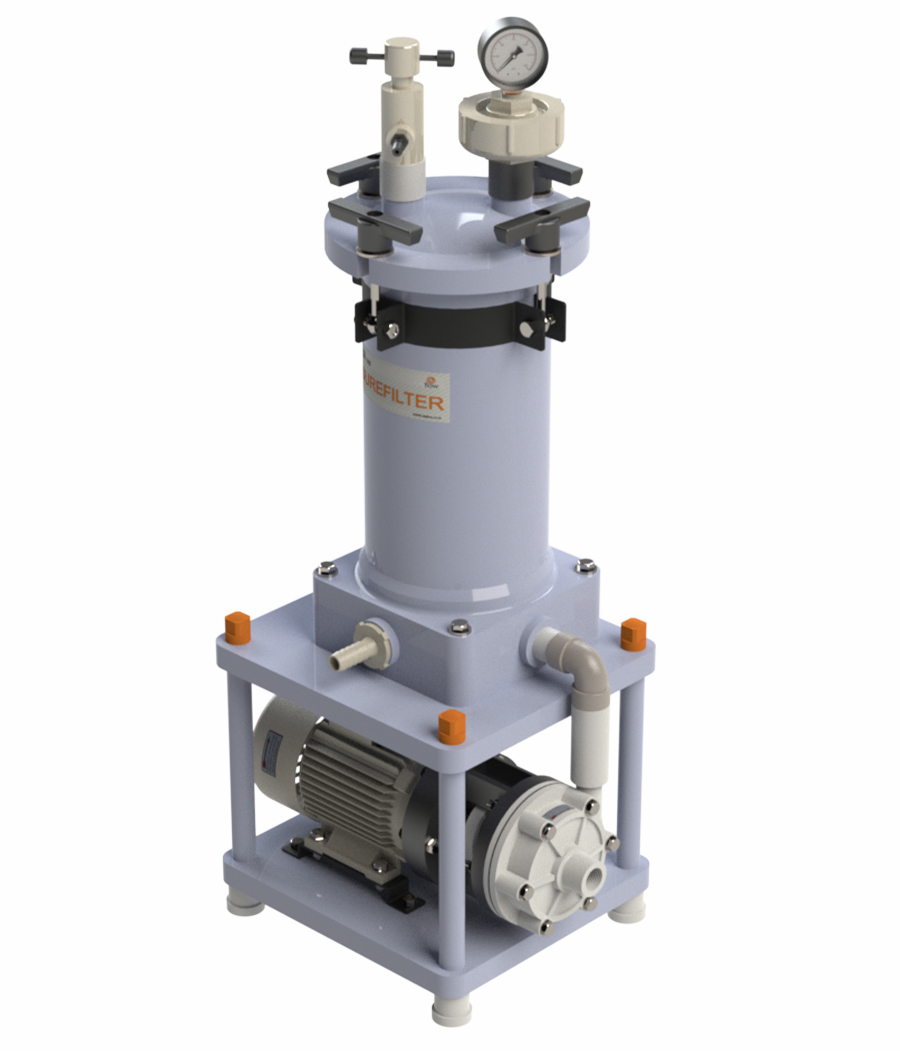

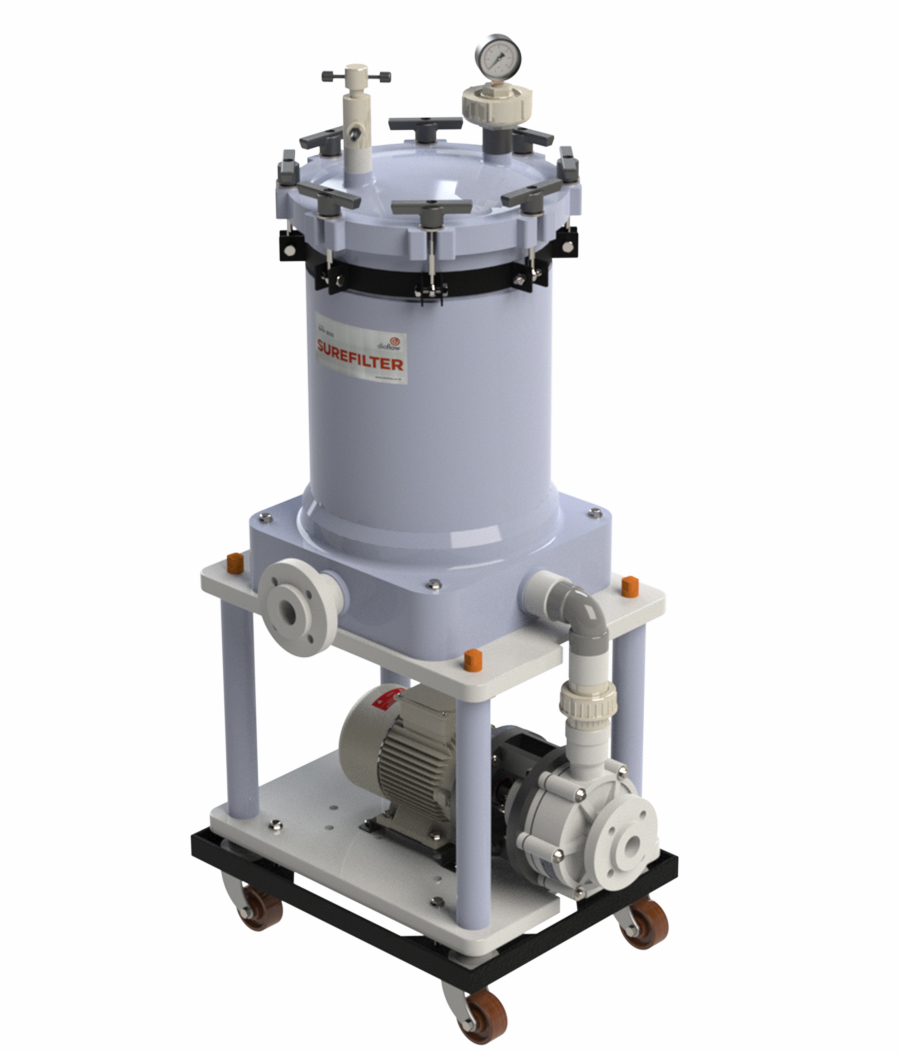

SFP - FILTER UNIT

  • Home
  • SFP - FILTER UNIT

SFP - FILTER UNIT - Economic

-

Size Available
Tags :- Heavy duty Cover Clamp PP Stand Moulded PP Pump Internal mechanical Seal PP gauge saver

-

SFP 85

M.O.C. – Chamber Moulded PP
No. Of Plates In Chamber 20
Dia. Of Plates 85 mm
M.O.C. - Plates P.P
Max. Pressure 0.8 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 3000 Ltr / hr
Suction X Discharge 0.5 Inch X 0.5 Inch
Pump Model (Monoblock) DMP 50 IMS
Motor 0.5 HP 2900 RPM

SFP 145

M.O.C. – Chamber Moulded PP
No. Of Plates In Chamber 20
Dia. Of Plates 145 mm
M.O.C. - Plates P.P
Max. Pressure 0.8 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 4000 Ltr / hr
Suction X Discharge 0.75 Inch X 0.75 Inch
Pump Model (Monoblock) DMP 50 IMS
Motor 0.5 HP 2900 RPM

SFP 200

M.O.C. – Chamber Moulded PP
No. Of Plates In Chamber 20
Dia. Of Plates 200 mm
M.O.C. - Plates P.P
Max. Pressure 1.2 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 6000 Ltr / hr
Suction X Discharge 1 Inch X 1 Inch
Pump Model (Monoblock) DMP 100 IMS
Motor 1 HP 2900 RPM

SFP 300

M.O.C. – Chamber Moulded PP
No. Of Plates In Chamber 20
Dia. Of Plates 304 mm
M.O.C. - Plates P.P
Max. Pressure 1.7 kg/mtr2
Max. Operating Temp. 60 ℃
Max. Capacity 12000 Ltr / hr
Suction X Discharge 1.5 Inch X 1.5 Inch
Pump Model (Monoblock) DMP 200 IMS
Motor 2 HP 2900 RPM
